Distributed Temperature Sensing
A distributed temperature sensing engine for partners building local thermal monitoring systems. Use Planck DTS hardware, software modules, and integration support as the foundation for cable, tunnel, pipeline, tank, and industrial applications.
Integration-ready
Teams need hardware that can be configured, monitored, and connected into application-specific platforms. Planck DTS is positioned as a precise sensing foundation with software tools for further development.

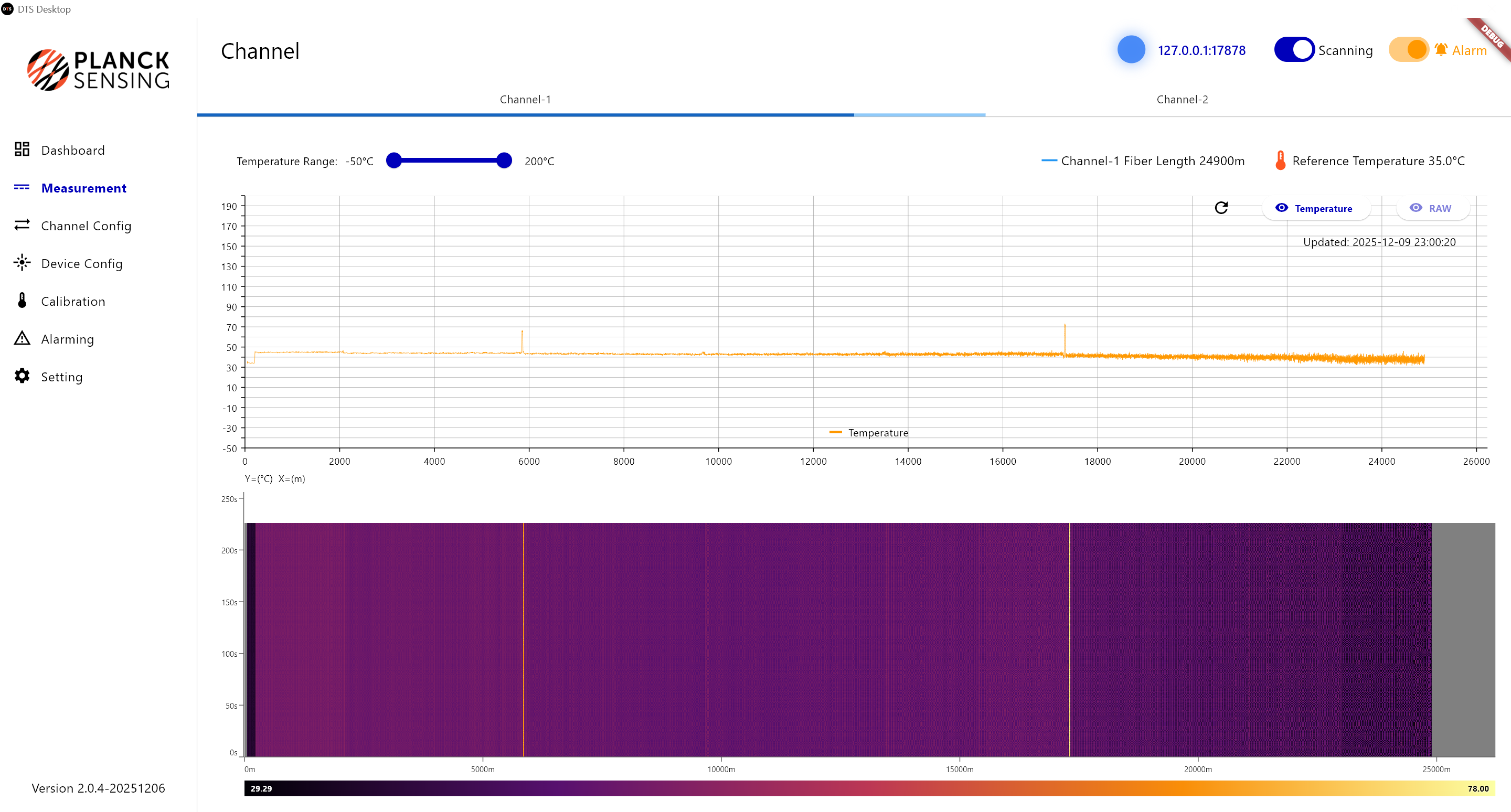

Temperature curves, waterfall views, channel state, and operating visibility.

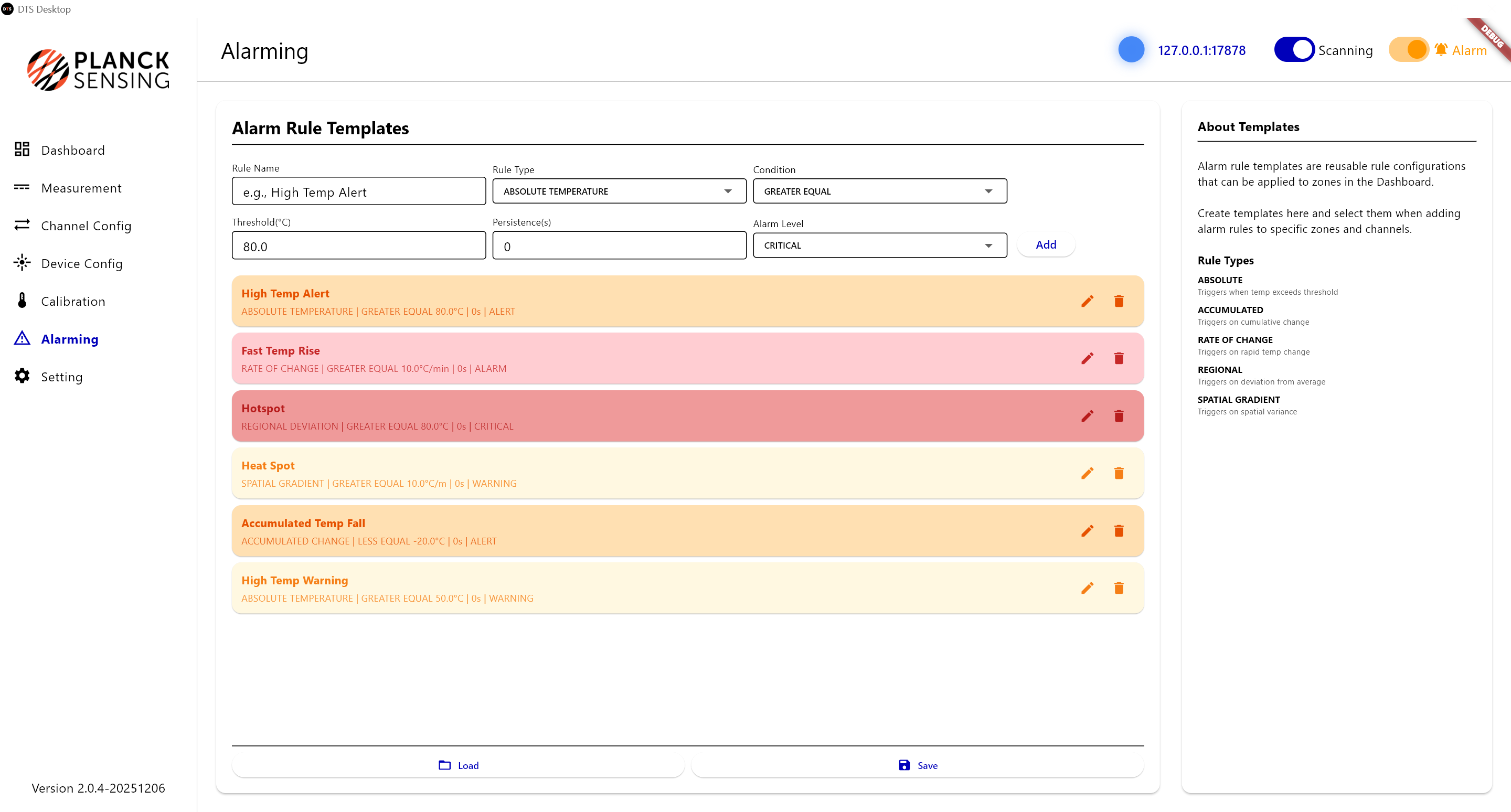

Threshold configuration and event notification patterns for partner applications.
Reference point setup and field configuration assistance.
API, SDK, data export, and software adaptation support for partner platforms.
Software intelligence

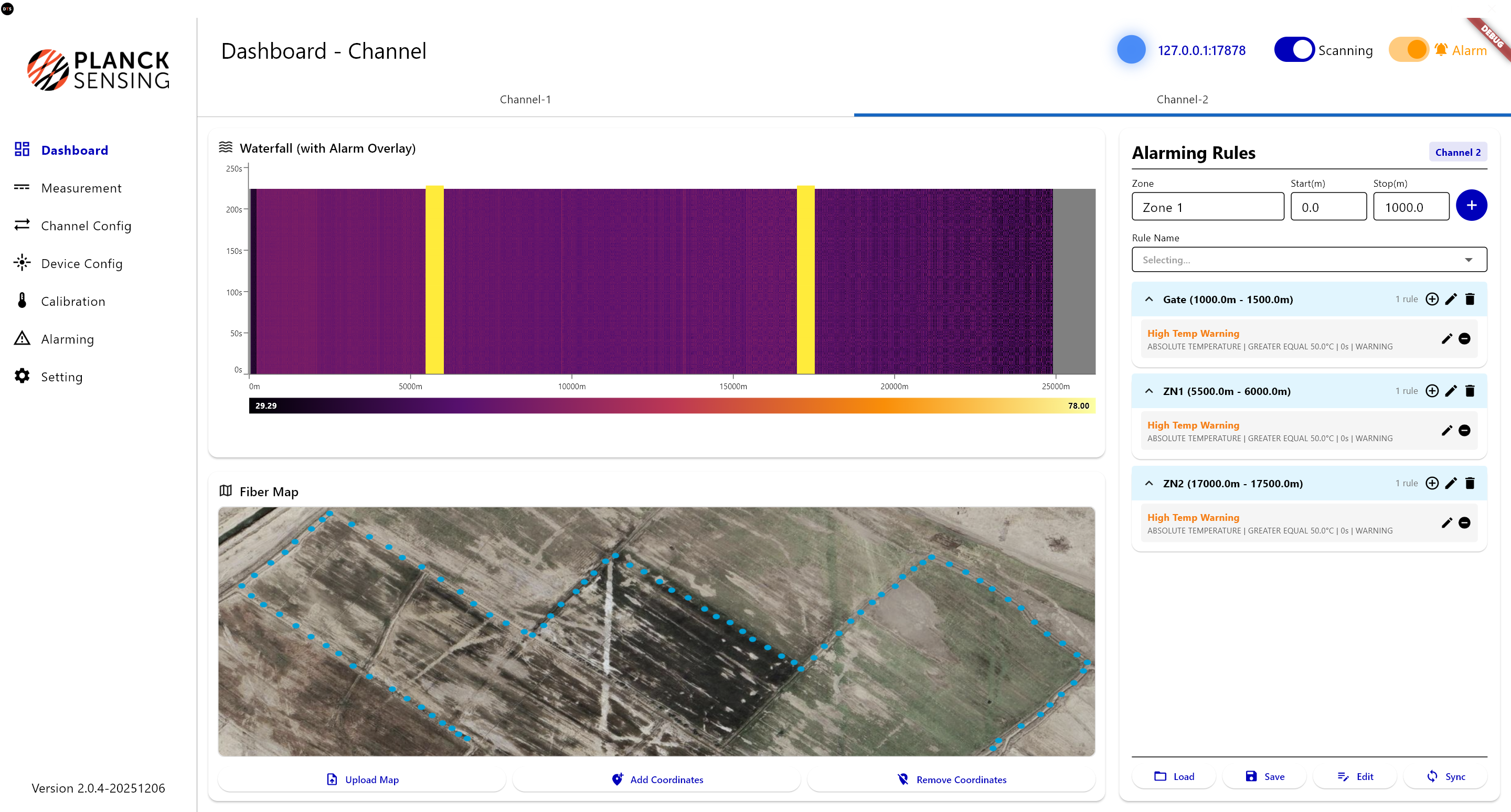

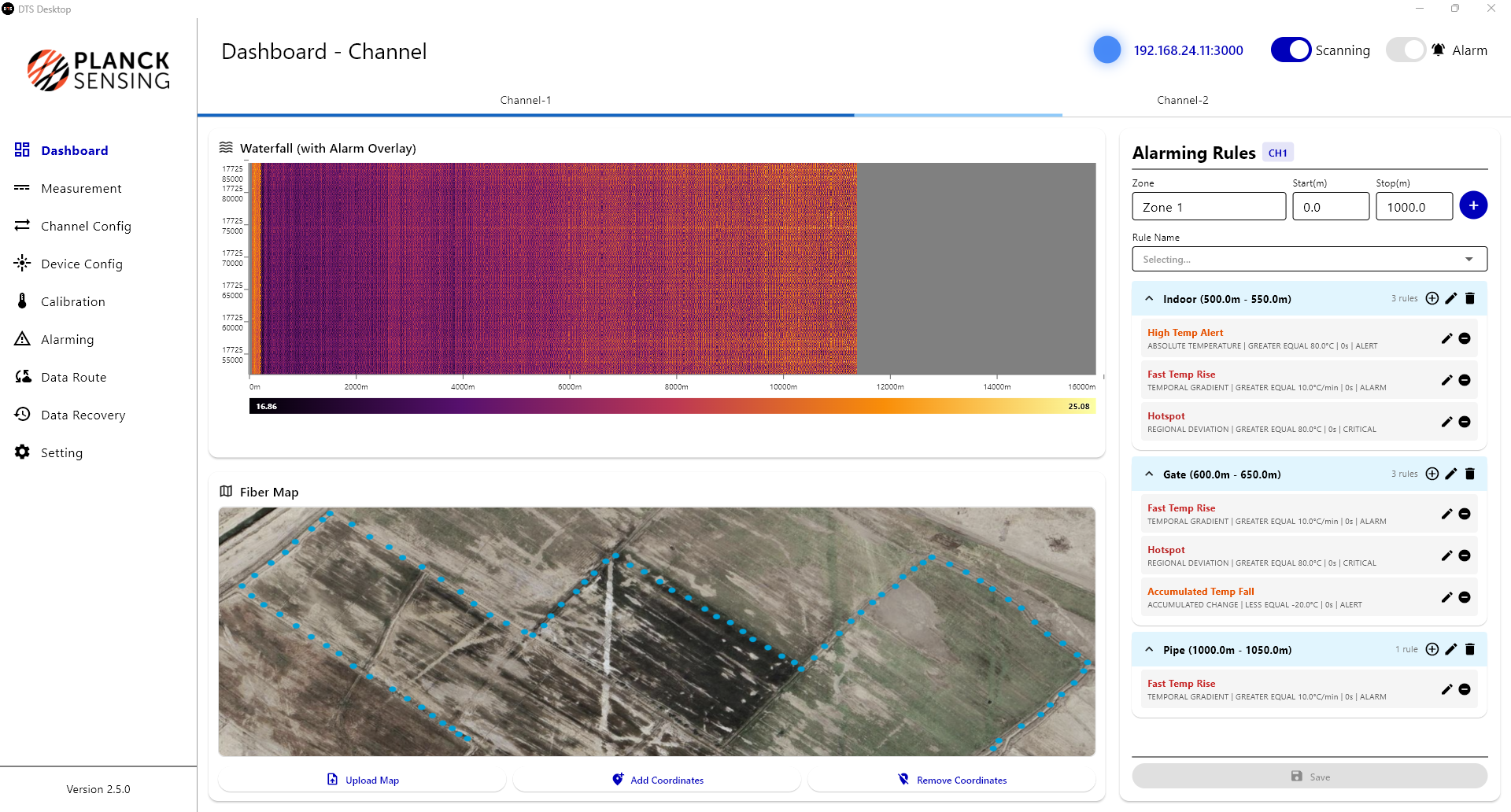

Monitor channel waterfall data, fiber-map context, and zone-based alarm rules.

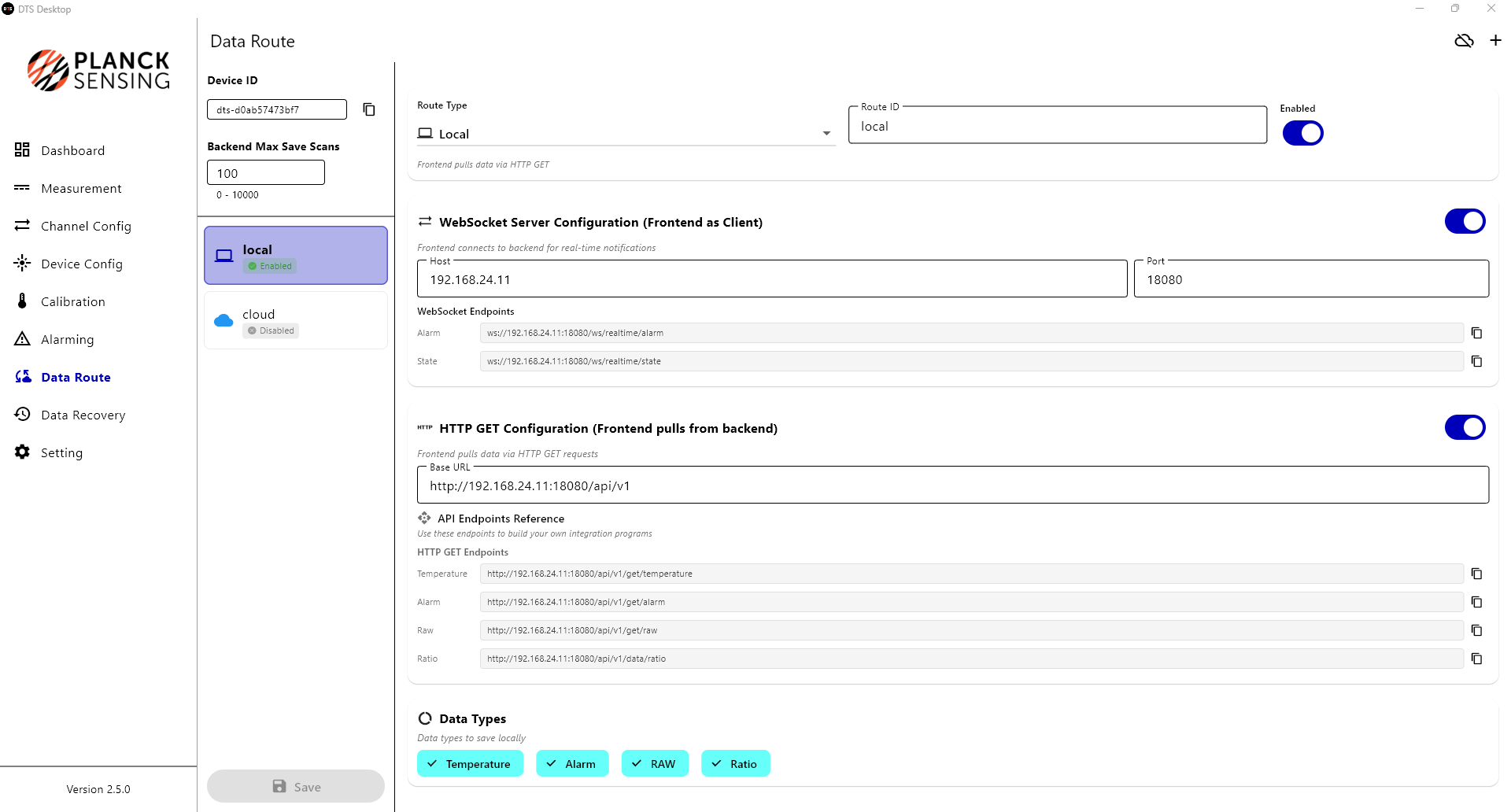

Configure local or cloud data routes, WebSocket endpoints, HTTP API access, and saved data types.
Technical specifications
Use these as starting specifications. Final configuration depends on fiber type, range, resolution, environment, and partner integration requirements.
| Configuration | Range | Resolution | Accuracy |
|---|---|---|---|
| Single-mode DTS | 25-30 km | 5 m | +/- 3 deg C far end |
| Multi-mode DTS | 10-15 km | 1 m | +/- 2 deg C far end |
| High-precision multi-mode DTS | 2-5 km | 0.3 m | +/- 2 deg C far end |
Reference applications
These pages describe typical workflows, equipment fit, and software modules that can help teams start application-specific development faster.
